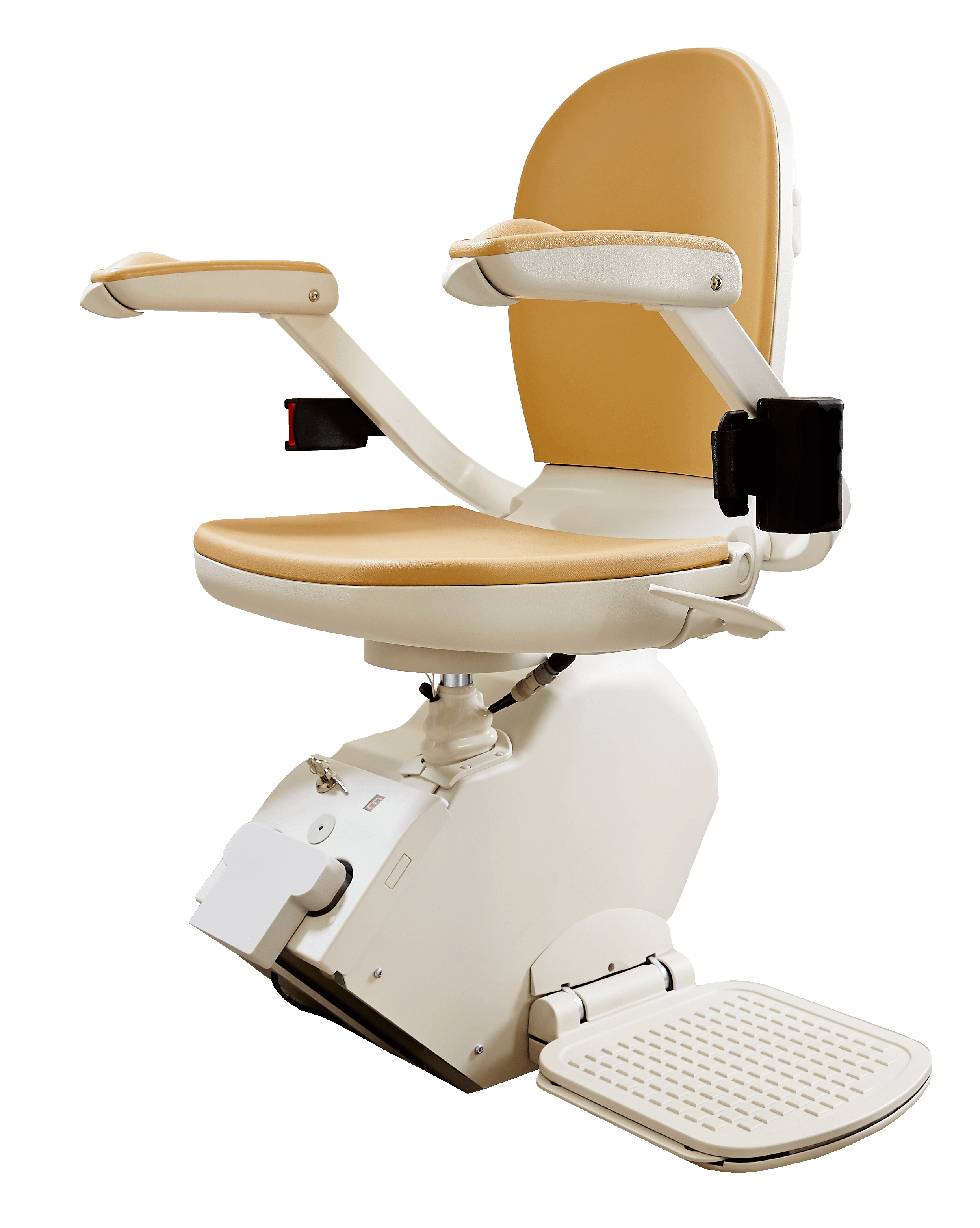

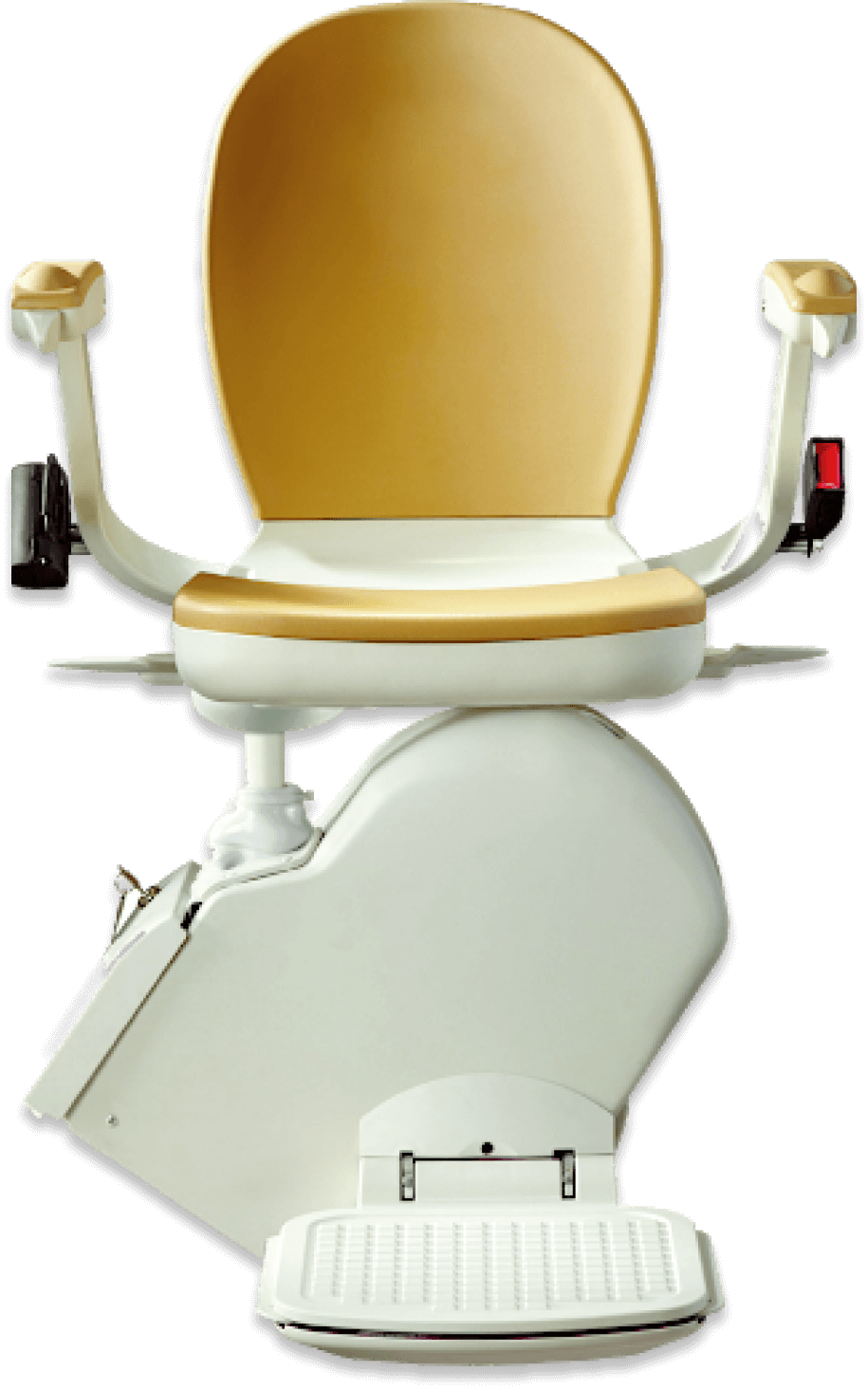

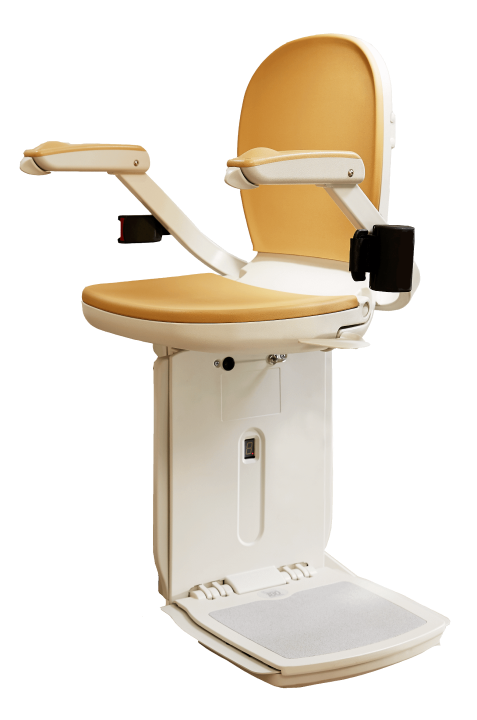

Acorn 130 Straight Stairlift

Blends seamlessly into your Illinois home. With Acorns' Straight stairlift installed, you can regain independence in your own home.

Quick and easy fit to the stairs, not the wall

No structural changes needed to your Illinois home

Slimline design, and with the ability to fold away when not in use

Inertia seatbelt fitted as standard

Maximum weight of 300lbs

CLICK HERE FOR TECHINAL DETAILS

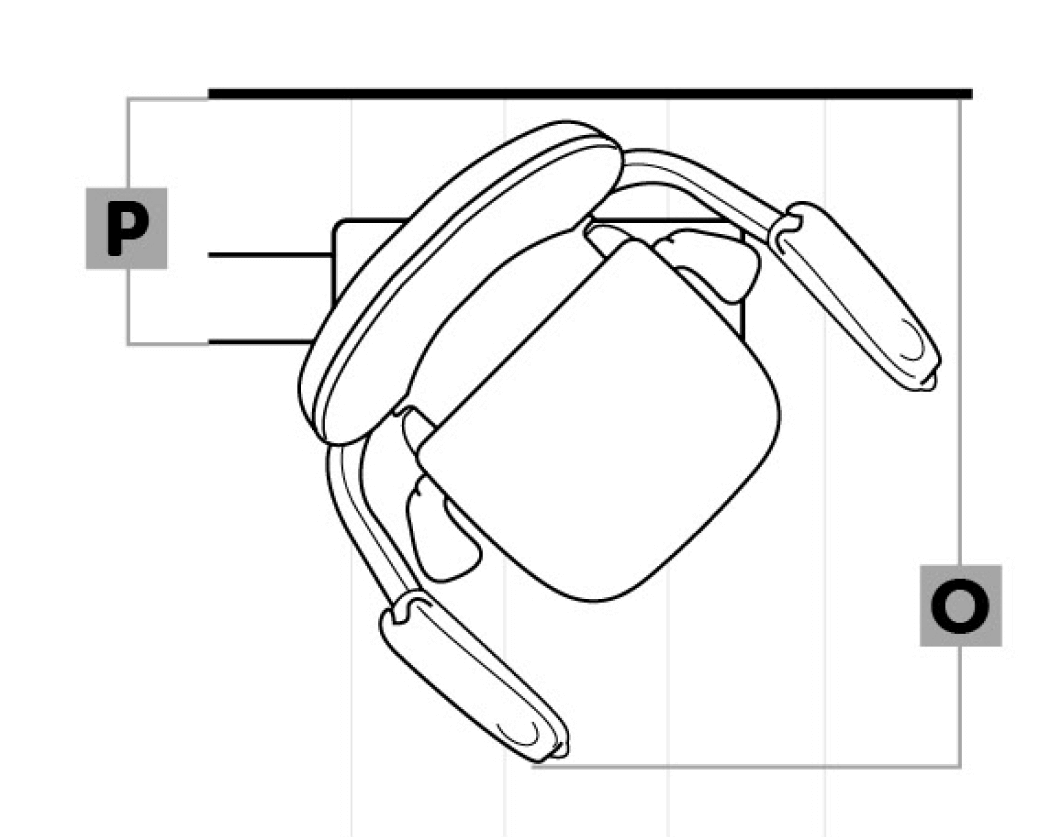

top down view of Acorn straight Stairlift

Seat	Standard Indoor 130	Power Swivel 130	Outdoor 130
Short seat post	40-55Â°	N/A	N/A
Standard seat post	29-55Â°	36-55Â°	27-55Â°
Tall seat post	23-55Â°	23-55Â°	N/A

Maximum Rail Length
10 metres	394 inches

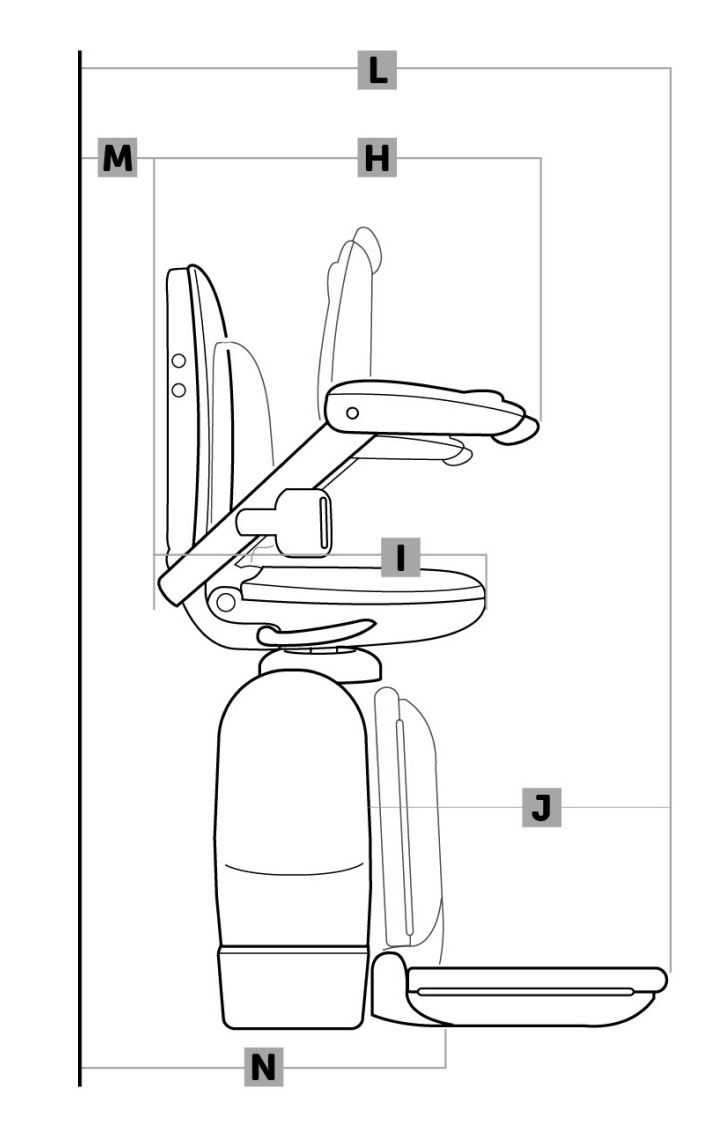

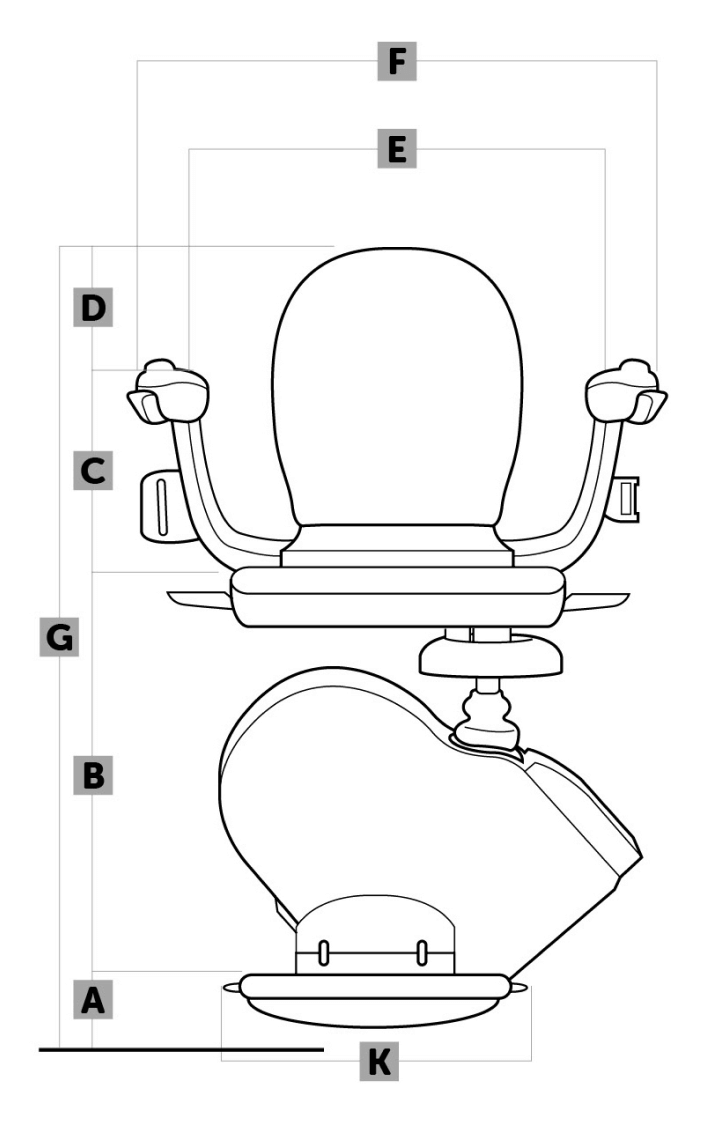

Dimensions		mm	inch
A	Floor to top of footrest	95	3.75
B	Top of footrest to top of seat (Short) (Tall)	445 (410) (505)	17.5 (16.25) (19.75)
C	Top of seat to top of arms	250	9.75
D	Top of arms to top of seat back	190	17.5
E	Width between armrests (Wide arm version)	445 (495)	17.5 (19.5)
F	Overall width	605	23.75
G	Overall height to floor	980	38.5
H	Length of arms from seat back	470	18.5
I	Length of seat base from seat back	435	17
J	Length of footrest	325	12.75
K	Width of footrest	310	12.25
L	Front of footrest to stringer	570	22.5
M	Back of seat to stringer	13	0.5
N	Folded width	310	12.25
O	Minimum width required to swivel at top	670	26.25
P	Distance from front of rail to stringer (Wide arm version)	215 (240)	8.5 (9.5)

Specifications
Motor output speed	No greater than 0.15 metres per second
Method of drive	Rack and Pinion
Carriage Power	24v DC batteries
Motor Power	0.25KW
Maximum capacity	127kg
Maximum capacity HD version	159kg
Power supply input range	50-60Hz, 120-240V AC

installing acorn straight stairlift in a Illinois home

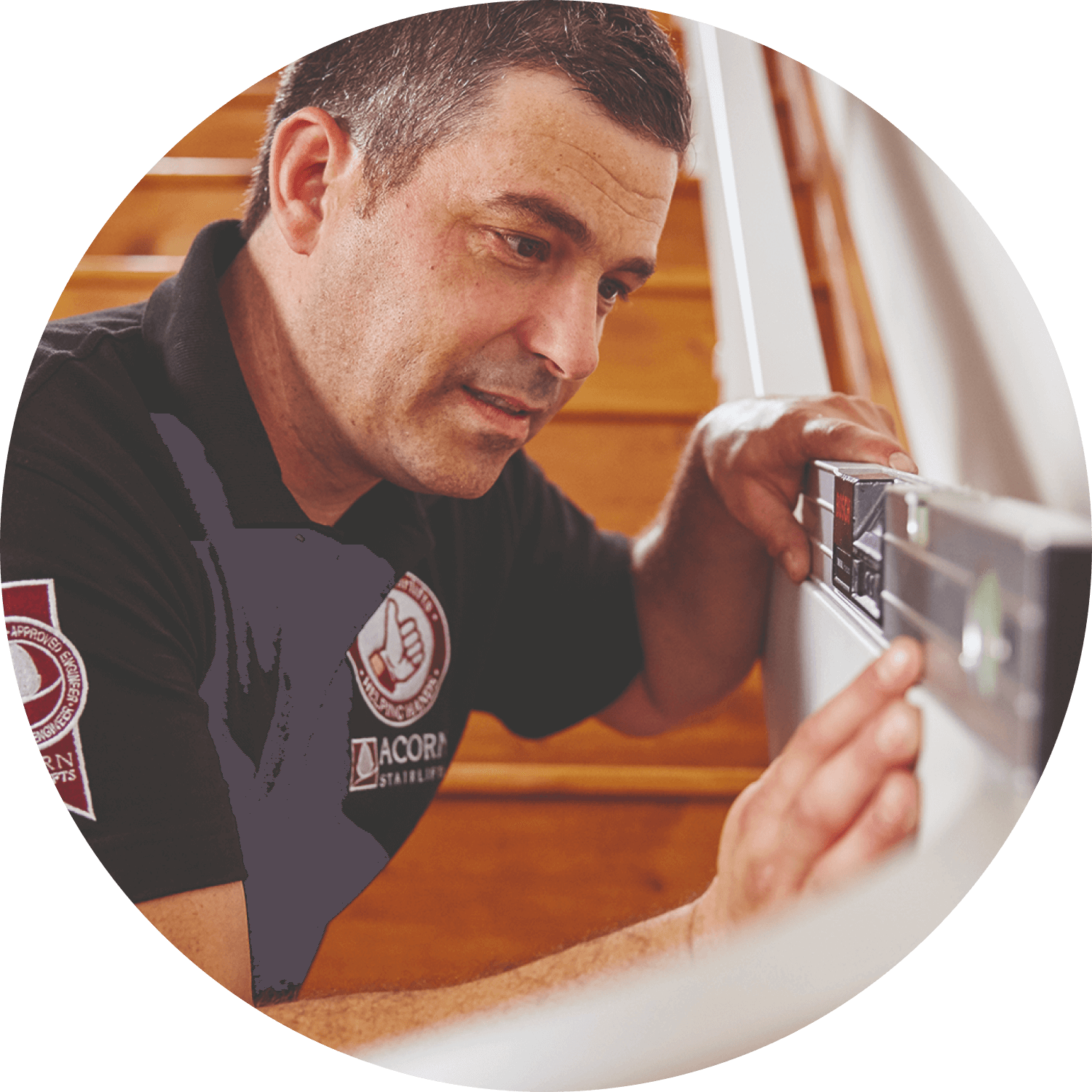

Installation of the Acorn 130 Straight Stairlift in your home in Illinois

After you have decided to have an Acorn Stairlift installed in your home in Illinois and a few days is all that is required to complete installation of your Acorn Straight Stairlift.

Aftercare services for your Acorn 130 Straight Stairlift in your home in Illinois

To ensure you are entirely happy with your stairlift aftercare is a top priority at Acorn, as well as to us as a partner of America's leading stairlift manufacturer.
This is why Acorn's dedicated help desk is just a phone call away 365 days a year. Extended stairlift warranties are available too, which means technicians will visit your home in Illinois in the unlikely event of a breakdown and also covers the cost of all callouts, parts and labor.

Acorn straight stairlift aftercare in Illinois

Use the form below to arrange your FREE quote for a stairlift in Illinois.

Simply enter your details below and a trusted Acorn representative will be in touch to arrange a home survey and to provide you with your free no obligation quotation.
